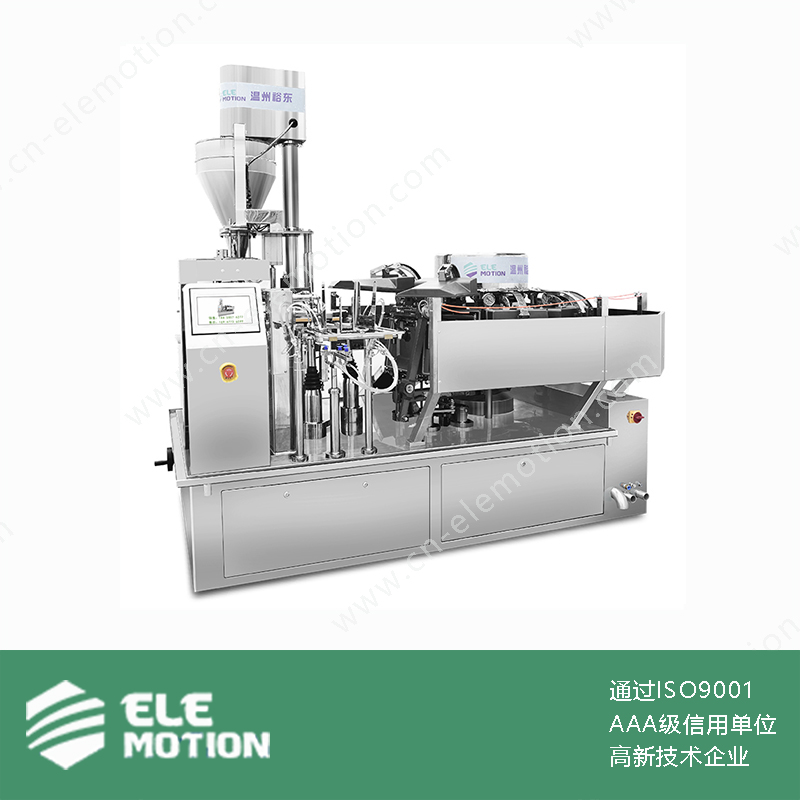

YD-ZKCD-1621 给袋真空充氮一体包装机
技术参数:YD-ZKCD-1621 给袋抽真空充氮气包装机
机器型号 Machine Model |
YD-ZKCD-1621 |
|
工作流程 Work Process |
①上袋 ②打码(选配) ③开袋、撑袋 ④下料 ⑤下料 ⑥拉直 ⑦转至真空腔 ⑧盒盖 ⑨抽真空 ⑩充氮气 ⑪封口 ⑫封口冷却 ⑬放气 ⑭出袋 ①bag feeding②code printing(optional)③open the bag④material feeding⑤material feeding⑥bag pulling⑦passing to vacuum chambers⑧close the lid⑨vacuumize⑩Nitrogen filling⑪seal⑫seal&cool⑬deflate⑭bag out |
|
设备材料 Equipment Material |
304不锈钢 304 stainless steel |
|
真空泵 Vacuum Pump |
德国普旭100/上海众德100(选配) BUSCH(German)/ ZD(Shanghai)(optional) |
|
气动元件 Pneumatic Components |
日本SMC/费斯托(标准件)可选配、台湾亚德客(非标件) SMC(Japan)/ FESTO(German)(optional)、Airtac(Taiwan)(non-standard parts) |
|
驱动方式 Driving Mode |
机械传动(凸轮齿轮杠杠全机械模式) Mechanical drive(cam gear lever full mechanical mode) |
|
封口方式 Heat Sealing |
瞬间加热封口、封口完成后瞬间冷却,以确保封口美观 Instant heat sealing and instant cooling, ensure nice sealing appearance |
|
包装速度 Packing Speed |
35 - 50包/分钟(根据产品特性和袋型而定) 35 - 50 bag/min(depending on ingredients) |
|
包装袋材料 Pouch Type |
三边封袋、铝箔袋、尼龙袋、纸袋等覆膜袋 3-side sealing bag, Aluminum foil bag, Nylon bag, Compound bag, paper bag, etc |
|
包装袋规格 Pouch Dimension |
宽:80 - 160mm长:60 - 210mm W:80 - 160mm L:60 - 210mm |
|
主机功率Host Power |
≈12KW |
≈12KW |
耗气量Air Consumption |
≥0.8m³/分钟 |
≥0.8m³/min |
驱动电源 Drive Power |
三相五线380V 50HZ 3-phase 5-wire system 380V 50HZ |
|
外形尺寸 Dimension |
2460 x 2100 x 1600mm(L x W x H)(不含提升机) 2460 x 2100 x 1600mm(L x W x H)(without elevator) |
|
主机重量Weight |
2.3T |
2.3 Tons |
冷却用水Cooling Water |
15-20℃, 3升/分钟 |
15-20℃, 3 liters/min |
使用环境 Use Of The Environment |
室温10-40℃,30-90%RH,无结露,无腐蚀性气体,无灰尘等其他恶劣坏境 Room temperature 10-40℃, 30-90% RH, No Condensation, No Corrosive gas, No dust and other harsh environment. |
